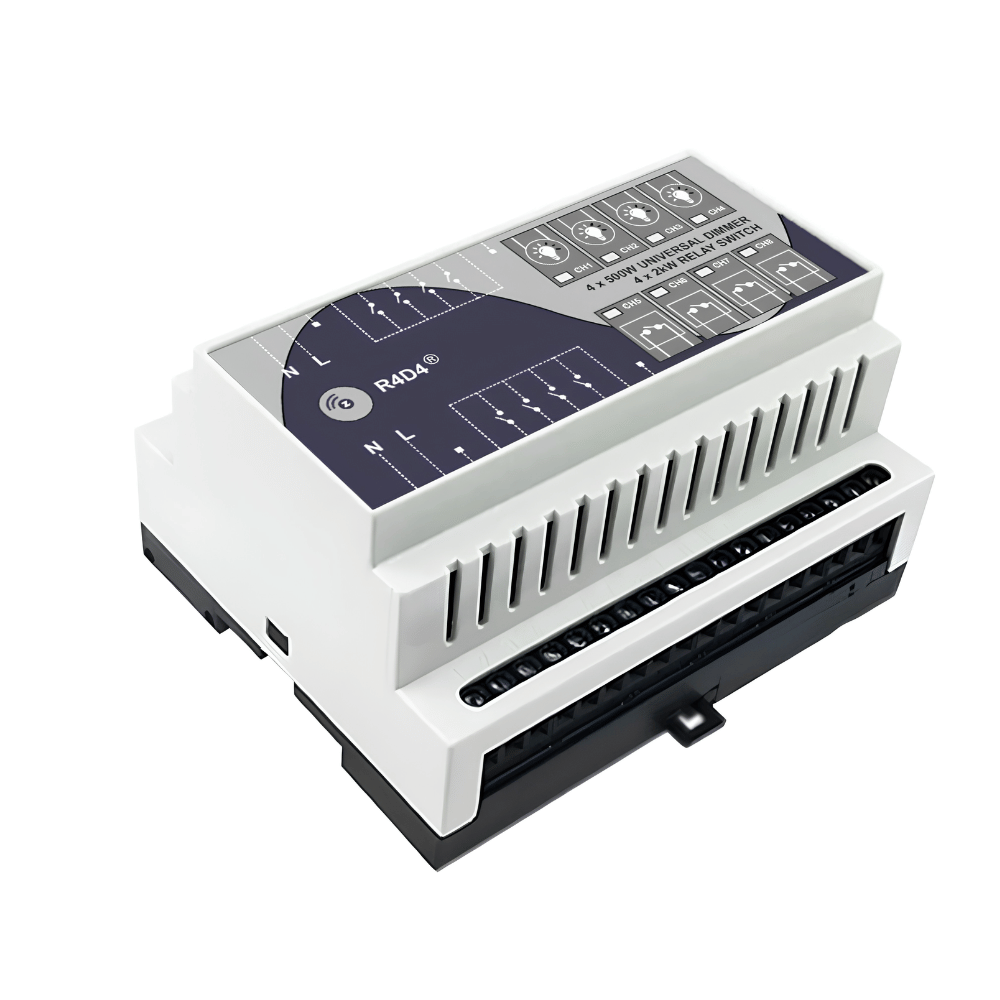

R4D4

Z-Wave, DIN Rail, 4 RELAY and 4 UNIVERSAL DIMMERS

MORE DETAILS



DESCRIPTION
CONNECTION
SPECIFICATION
  • 4x500W dimmable outputs with user-configurable dimming mode – Leading or Trailing Edge (individual setting for each channel).
  • 4x2kW Relay Outputs, capable to control AC or DC loads.
  • High quality, low RDS MOSFET power transistors.
  • Durable relays with long life contact system.
  • Zero Cross switching provides long relay life and suppression of any high inrush currents.
  • Over-temperature protection.
  • User-configurable Power Up Memory function.
  • User-configurable button type - push button, toggle switch, or follower switch (individual setting for each channel).
  • User-configurable Soft Start (individual for each dimmer channel).
  • User-configurable MIN and MAX dimming levels (individual for each dimmer channel).
  • 16A rated PCB power tracks and terminals.
  • Front panel LED indication of active outputs.
  • ABS enclosure for standard DIN Rail mounting.
  • Durable tactile button on the front panel.
  • Maximum power ratings:

Dimmer channels (CH. 1 to 4):
- 500W/channel (at 25°C ambient temperature).
- 400W/channel (at 35°C ambient temperature).
Relay channels (CH. 5 to 8):
- Max. AC output: 10A / 110-230V (resistive load).
- Max. DC output: 12A / 12-30VDC.

  • Power Supply range: 110-240VAC, 50/60Hz.
  • Dimensions: 105x86x57mm.
  • Conforms to EU regulations: EN55022, EN610006.
  • Radio protocol: Z-Wave Plus, GEN 5.
  • Radio Frequency: CERT(Europe), Russia, USA.
  • Antenna range: up to 50m outdoor / 30m indoor.

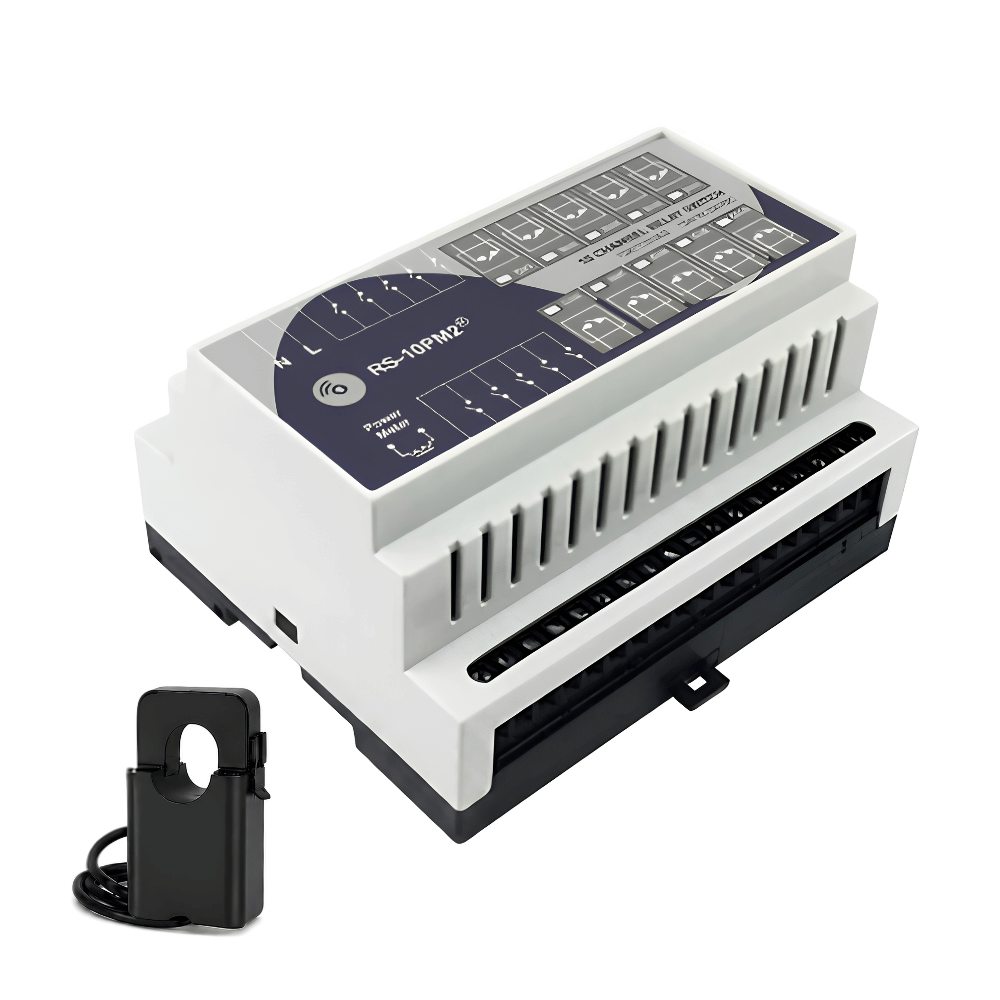

RS-10PM2

Z-Wave, DIN Rail, 10-CHANNEL RELAY with True RMS Power meter

MORE DETAILS



DESCRIPTION
CONNECTION
SPECIFICATION
  • 10 independent relay outputs.
  • Opto-isolated. Surge protected.
  • Capable to control AC and/or DC loads.
  • Front panel LED indication of active outputs.
  • ABS Enclosure for standard DIN Rail mounting.
  • User-configurable Power Up Memory function.
  • User-configurable switch type – push button, toggle switch or follower switch (individual for each channel).
  • Power meter with 60A current clamp (included), reporting all power data to the Z-Wave Controller (True RMS Voltage, Frequency, Current, Instant Active Power, Power Factor and Energy Usage).
  • Durable relays with long life contact system.
  • Zero Cross switching provides long relay life and suppression of any high inrush currents.
  • 16A rated PCB power tracks and terminals.
  • Remote control of the outputs via the Z-Wave network and local control by push buttons or switches.
  • Power supply: 110-240VAC, 50/60Hz.
  • Dimensions: 105x86x57mm.
  • Maximum AC output: 10A / 110-230V (resistive load).
  • Maximum DC output: 12A / 12-30VDC.
  • Conforms to EU regulations: EN55022 EN61000-6.
  • Radio protocol: Z-Wave Plus, GEN 5.
  • Radio Frequency: CERT(Europe), Russia, USA.
  • Antenna range: up to 50m outdoor / 30m indoor.

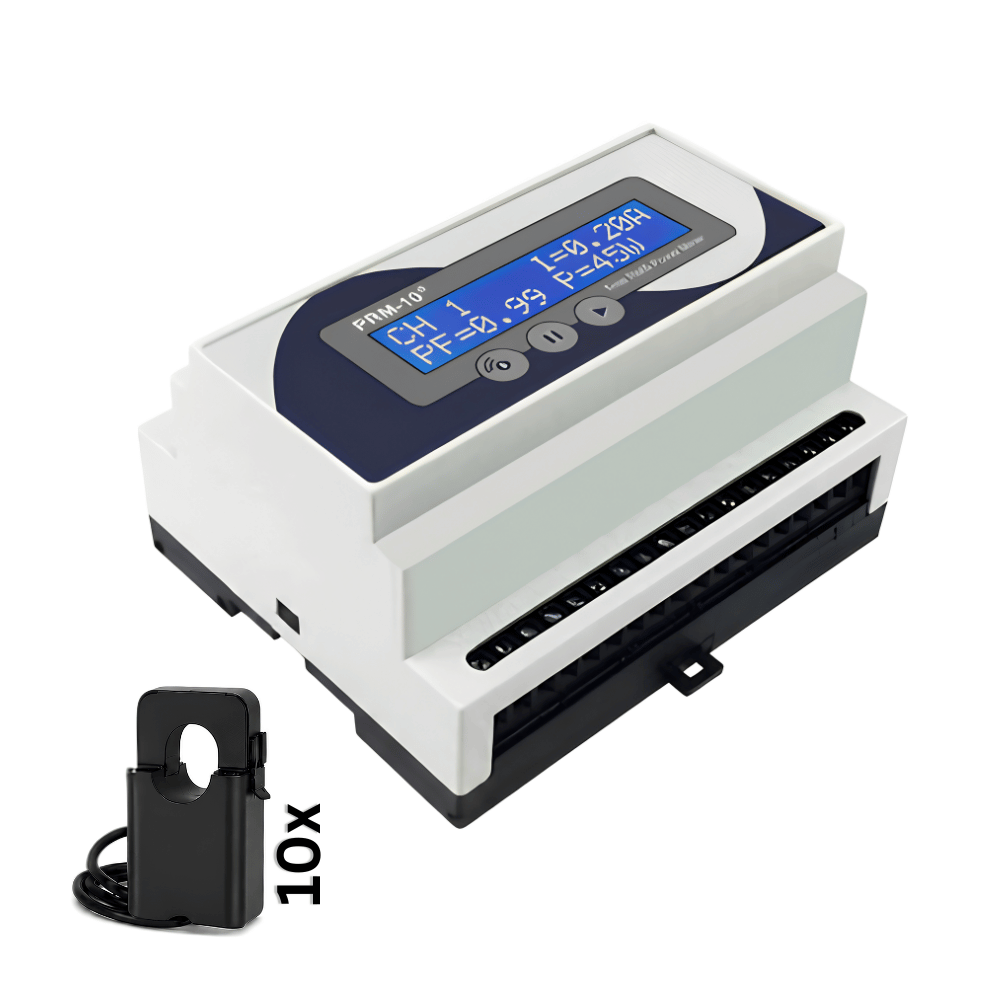

PRM-10

Z-Wave, DIN Rail, 10-CHANNEL, True RMS POWER/ENERGY METER

MORE DETAILS



DESCRIPTION
CONNECTION
SPECIFICATION
  • 10 Power meter channels.
  • True RMS Metering.
  • 10 x 60A rated current clamps (included).
  • ABS enclosure for standard DIN Rail mounting.
  • Durable tactile buttons on the front panel.
  • Panel display, indicating all the measured data:

      - Network Voltage and Frequency;
      - Current, Active Power and Power Factor for each channel;
      - Total Current, Total Active Power, and Total Power Factor.

  • Auto-scrolling function with an option to monitor each channel individually, or auto-scrolling between data, measured by all channels.
  • Z-Wave reported data:

      - Individual Z-Wave Report for Instant Active Power of each channel.
      - Z-Wave Reports for instant values of Total Current, Total Active Power and Total Power Factor (summary for all channels).
      - Z-Wave Reports for RMS Voltage and Frequency of the power grid.
      - Z-Wave Report for Total Energy Usage of all channels.
      - Overcurrent Alarm notification for Total Current (user configurable).

  • Power supply: 110-240VAC, 50/60Hz.
  • Dimensions: 105x86x57mm.
  • Conforms to EU regulations: EN55022, EN610006.
  • Radio protocol: Z-Wave Plus, GEN 5.
  • Radio Frequency: CERT(Europe), Russia, USA.
  • Antenna range: up to 50m outdoor / 30m indoor.




DIN RAIL Enclosures

FGD-212, FGS-212, FGS-213, FGS-214, FGS-222, FGS-223,

FGS-224, FGR-222, FGR-223, FGRGBW-442, FGRGBWM-441

MORE DETAILS



DESCRIPTION
CONNECTION (All Enclosures)
  • Ventilated DIN Rail enclosure.
  • 16A rated PCB power tracks and terminals.
  • Solvent resistant PVC Label and terminal markings.
  • Compatibility: Fibaro inserts FGD-212, FGS-212, FGS-213, FGS-214, FGS-222, FGS-223, FGS-224, FGR-222, FGR-223, FGRGBW-442, FGRGBWM-441.
